Hong Kong Security Association

Wireless Security Systems


Intruder

Alarm in real time on your mobile phone.

Control your home from your mobile app.

No cables or hole drilling to install.

Accessible from anywhere in the world.

User

  • Sensors are paired to our Smart Hub
  • Peel the backing off the adhesive and stick on any door jam, window frame or wall
  • Check In From Anywhere: See the status of your window or door by checking the Home app (iOS/Android) when connected to a Smart Hub
  • Automate Your Home: Have your entryway lights turn on when you open the front door automatically. Use the open/close status in the app to trigger other smart devices
  • Set Alarm for immediate notification of security breach
  • No cables or hole drilling: wireless components use adhesive on the back side
  • No hidden costs or monthly payments

wireless physical security system

Magnetic Contact

Smart Window & Door Sensor

  • Requires ZigBee Hub
  • Product Dementions 23 x 49 x 12 mm
  • Item Weight 0.012 kg
  • Battery 1 Lithium ion
  • Material PC

Motion Sensor

Smart PIR Motion Detector

  • Requires ZigBee Hub
  • Product Demensions 40 x 35 x 28 mm
  • Item Weight 19 gm
  • Battery 1 Lithium ion
  • Material PC

Temperature and Humidity

Indoor Temperature and Humidity Sensor

  • Requires ZigBee Hub
  • Product Dimensions 43 x 43 x 14 mm
  • Item Weight 155.5 gm
  • Battery 1 Litium ion
  • Material PC

android app

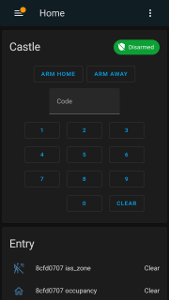

Mobile App

  • Free download app for iOS and Android
  • Mobile phone language automatically detected by the mobile app.
  • Control your home from your mobile phone
  • Connects directly to the Zigbee Hub without Internet
  • Requires Internet for Remote Access Using "Tailscale"

webcam

Video Camera

  • Resolution: HD 720p/30fps
  • Field of View: 60°
  • Autofocus: No
  • Auto Light Correction: RightLight 2
  • Mic: 1 omni-directional
  • Cable Length: 5 ft

speakers

Speakers

  • Door Bells, Sirens, arbitrary MP3 audio
  • USB-powered speakers with a black metal finish
  • Padded base for scratch-free placement and stability
  • In-line volume control for adjusting the volume
  • Frequency range 80 Hz - 20 KHz
  • Power: 2.4 watts of total RMS
  • Product dimensions: 3.9 x 2.6 x 2.8 inches
    (LxWxH, each)

Hub

ZigBee Hub

  • Pre-configured with “Home Assistant” operating system
  • Requires local Internet connection to provide remote mobile access
  • Power supply included
  • Mobile phone requires "Tailscale" app installed
  • Compatible smart home appliances and lights may be connected
  • Zigbee wireless exclusively

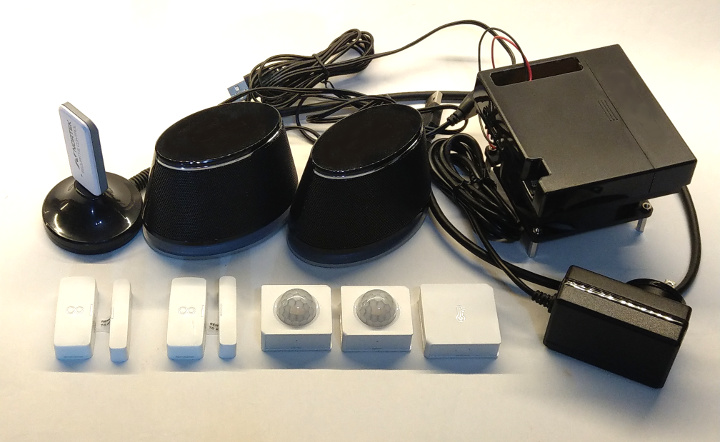

Basic Physical Security System Component List

  • Smart Window & Door Sensor (Qty = 2)
  • Smart PIR Motion Detector (Qty = 2)
  • Indoor Temperature and Humidity Sensor (Qty = 1)
  • Video Camera (Qty = 1)
  • Audio Speaker System (Qty = 1)
  • Zigbee Hub with power supply and antenna (Qty = 1)

Additional components can be ordered separately.
Product List: ha-prod-list-2023.pdf


Conditions:

Wireless Door locks, Smart Lights and Smart Cameras are available (inquire)
Purchase of complete basic set or individual components does not include Installation or Setup charges.
Site evaluation required to determine Installation and Setup charges.
Other features available upon request.
Local Internet access by Ethernet cable to router required for remote access and monitoring.
There is no WiFi connection to this system.
Some mobile phones can be configured as Internet routers.


CE Mark
