Jackson Research

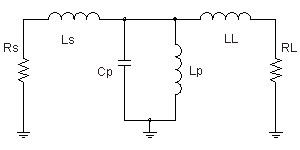

Single Tuned Filter Inductor Loading (select tank capacitor)

fo center frequency
MHz
del f3db bandwidth at 3db points
MHz
Rs source impedance
Ohms
RL load impedance
Ohms
Cp tank capacitor
F

Q Bandpass

Qbp

Dynamic Resistance

Ro
Ohms
Tank Inductor

Lp
H
Source side Inductor

Ls
H
Load side Inductor

LL
H
Adjusted Tank Inductor

L
H
Graph center frequency
MHz
Bandwidth centered about fc
MHz
db scale from 0db to
db
