JRECD635 3D printed EC motors slotless

JRECD635

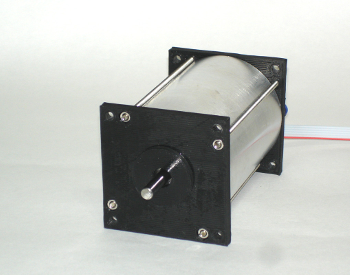

3-Phase BLDC (PMSM) Slotless Motor

Features

Electronically Commutated
Slotless Permanent Magnet Motor
Class A (105°C)
48Vdc Driver max
Sine Wave BackEMF
Continuous Stall Torque
Zero Cogging
Zero Detente Torque
Optional Winding Configurations
Data Sheet - jrecd635.pdf

Description

This machine is a BLDC (PMSM) permanent magnet motor with pure sine wave BackEMF. The slotless construction exhibits continuous stall torque with zero cogging and zero detente torque. The standard winding topology is a 3-Phase Y. Optional windings provide a broad range of input voltages and speed/torque variations. An encoder for conventional 3-phase electronic commutation is integrated. All polymer based parts are 3D printed.

HK$3875 or equivalent Bitcoins

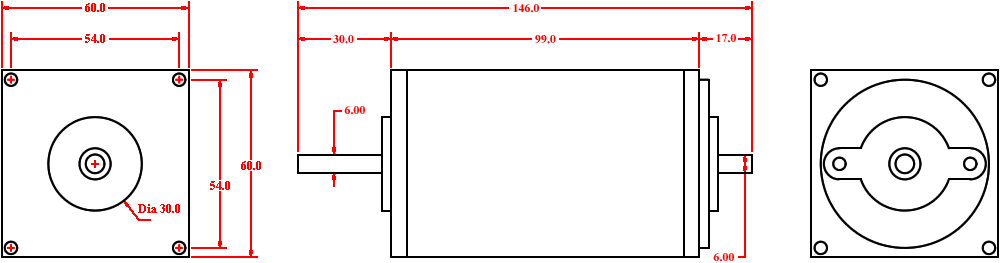

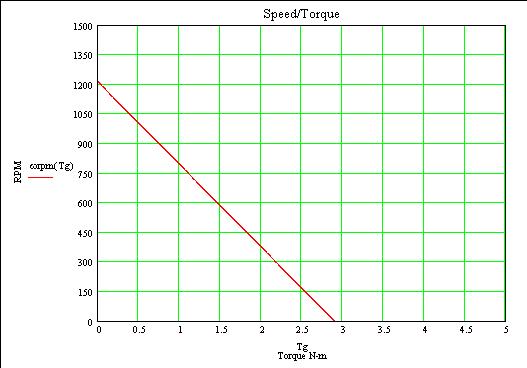

Speed/Torque Curve

Operational Characteristics

PARAMETER	SYMBOL	VALUE	UNITS
Power	Watts	30	Watts
Speed at Rated Power	N Rated	1200	RPM
Continuous Torque	Tc	x	N-m
Stall Torque	Tp	2.8	N-m
Continuous Line Current	Ic	x	Adc
Torque Sensitivity (DC Amps)	Kt	0.8	N-m/Adc
BackEMF (line-to-line)	Ke	28.3	VRMS/KRPM
Motor Constant	Km	0.51	N-m/√Watts
DC Resistance (line-to-neutral)	Rm	9.4	Ohms
Inductance (line-to-neutral)	Lm	3.6	mH
Rotor Inertia	Jm	2.39x10-4	kg-m2
Weight	Wt	0.80	kg
Static Friction	Tf	0.04	N-m
Thermal Time Constant	tc	x	°C/minute
Thermal Resistance	Rth	TBD	°C/Watt
Number of Poles		4
